Main structure consisting of the jacket, pile sleeves and conductor guides, wellhead module, boat landing and riser and deck.

Tripod jacket (L:77m, W:700t) is made up of three main legs, connected to each other by bracings. The jacket foundations are connected to the sea bottom by means of driving steel piles extending through the pile sleeves and into the sea bed.

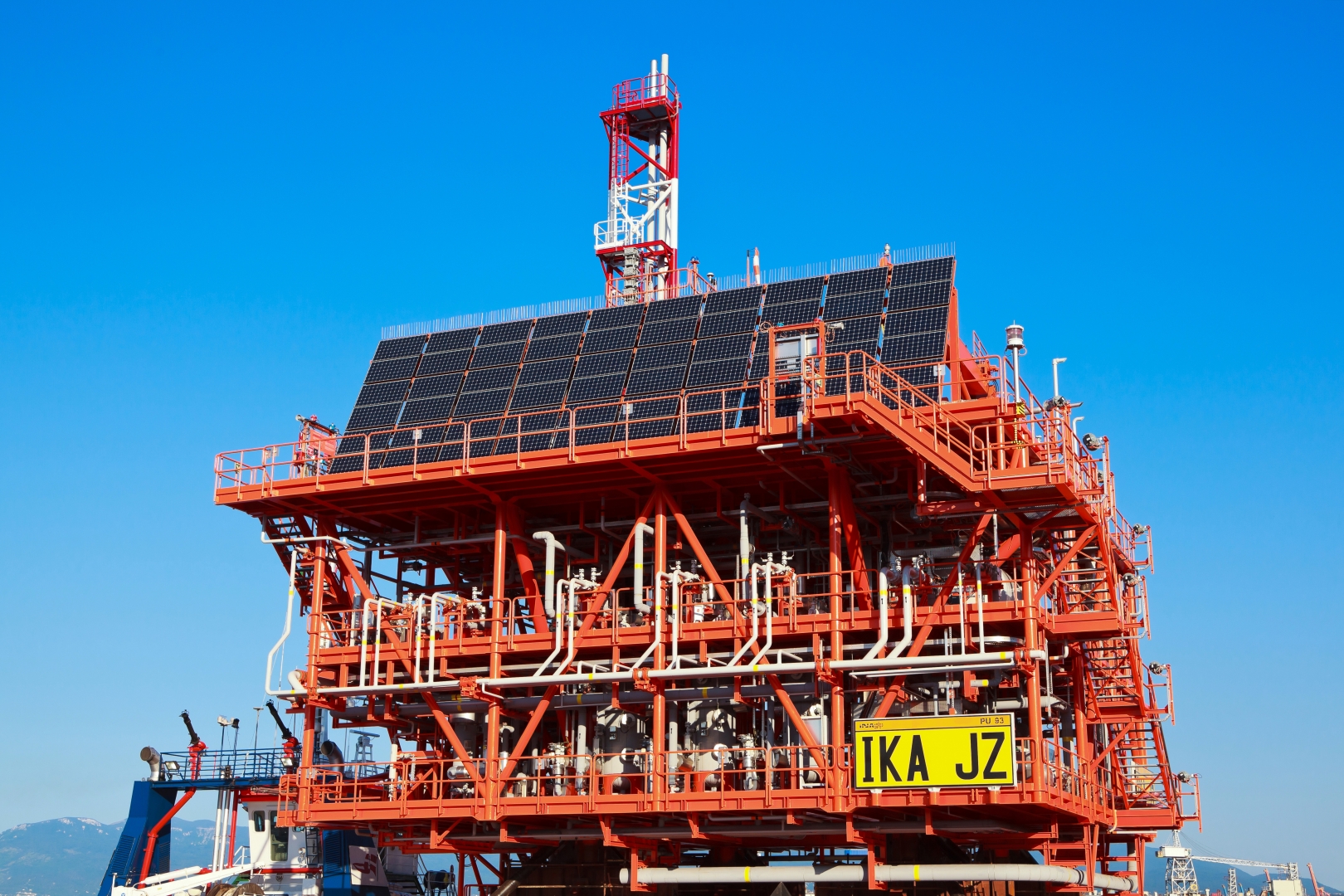

Equipped deck weight: 570 tons, 20x20m. Deck is a process module made up of three decks accommodating gas production equipment such as separators, filters, pipelines and other equipment supporting platform operations such as navigation lights, fire detection system, emergency systems, photo voltaic panels, safety equipment, crane, telecommunications and control systems.
Unmanned platform, without living quarters.

Scope of Work: Construction, Outfitting, On-shore Commissioning, Load-out, Sea Fastening, Hook-up, Commissioning, Assistance to Start up

• Number of wells: 4 dual
• Overall height: 16 m
• Overall length: 20 m
• Overall width: 20 m
• Water depth: 65 m
• Location: Adriatic Sea - Croatian Sector - IKA IDA Field
